5 x 4000 mm

CW008A, Cu-OF 5 x 4000 mm

Varenummer
1066461
Dimension
5 mm
Length
4000 mm
Weight
≈ 0.22 kg/m

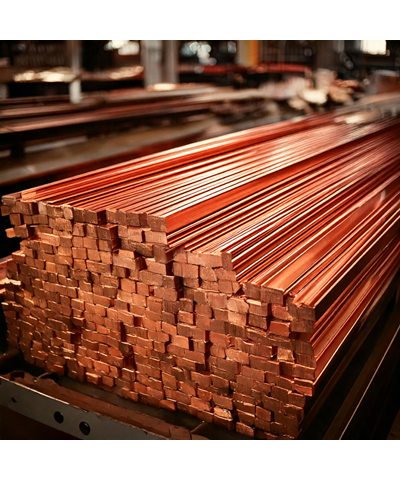

In electrical power distribution, a copper flat bar is a bar that conducts electricity within a switchboard, distribution board, substation, battery bank, or other electrical apparatus.
Its main purpose is to conduct a substantial current of electricity, and not to function as a structural member.



The material composition and cross-sectional size of the busbar determine the maximum amount of current that can be safely carried.

Stock
On request

CW008A, Cu-OF

Oxygen-free copper - the purest copper alloy. Refined in oxygen-free atmosphere as copper does not absorb oxygen during the refining process. Have maximum electrical conductivity and maximum coldformability when the alloy is oxygen-free is very suitable for welding + hard- and soft soldering. Primarily used where there are requirements for high electrical conductivity. Primarily bars / sheets and plates

We are not liable for items out of stock. The specified weight is theoretical. Please contact us if you have any further enquiries.

Technical Specifications

Alloys

Density Bi Cu Other Pb
Name g/cm3 Max Min Max Max
CW008A, Cu-OF 8.9 0.0005 99.95 0.03 0.005
