EN AW-6063 AWP 504 Bottom GB 23,5x27 Ral 9010 - 6000 mm
PaintedDownload PDF

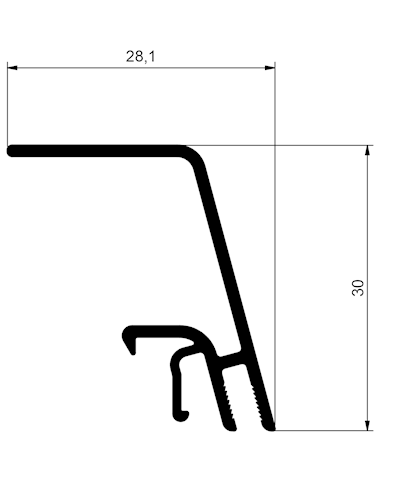

Download drawings in PDFEN AW-6063
Suitable for anodizing and has a high corrosion resistance. The alloy is suitable for welding.
We are not liable for items out of stock. The specified weight is theoretical. Please contact us if you have any further enquiries.
Alloys
Density | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Name | g/cm3 | Min | Max | Max | Max | Max | Min | Max | Max | Max | Max | Max | |
EN AW-6063 | 2.7 | Al, Aluminium | 0.2 | 0.6 | 0.35 | 0.1 | 0.1 | 0.45 | 0.9 | 0.1 | 0.1 | 0.1 | 0.15 |
Aluminium Properties
Thermal conductivity | Coefficient of thermal expansion | Melting point | Elastic modulus | Electrical conductivity | |||
---|---|---|---|---|---|---|---|
Alloy | Temper | W/m*K | µm/(m*K) | min °C | KN/mm2 | %IACS | |
EN AW-6063 | O | 218 | 23.5 | 615 | 655 | 69 | 57.5 |
EN AW-6063 | T1 | 193 | 23.5 | 615 | 655 | 69 | 50.5 |
EN AW-6063 | T4 | 197 | 23.5 | 615 | 655 | 69 | 49.5 |
EN AW-6063 | T5 | 209 | 23.5 | 615 | 655 | 69 | 55.5 |
EN AW-6063 | T6 | 201 | 23.5 | 615 | 655 | 69 | 52 |
EN AW-6063 | T8 | 201 | 23.5 | 615 | 655 | 69 | 52 |
