EN AW-6063 ATP 154 - 7500 mm

No surface treatment

Material id:

1104405

Length

7500 mm

Surface

No surface treatment

Profile name

ATP 154

Weight

≈ 2.76 kg/m

CO2e (avg)

≈ 8.7 kg/kg

Stock

Stock material

EN AW-6063

Suitable for anodizing and has a high corrosion resistance. The alloy is suitable for welding.

We are not liable for items out of stock. The specified weight is theoretical. Please contact us if you have any further enquiries.

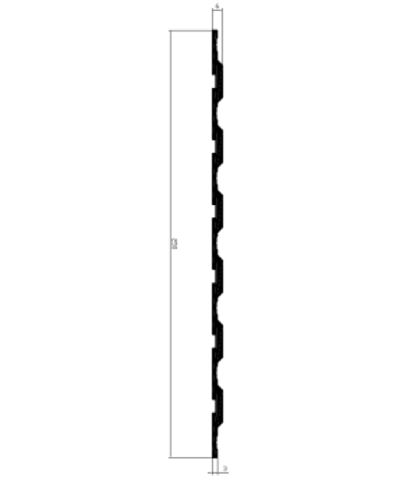

Download drawings in PDF

Technical Specifications

Alloys

	Density	Si		Fe	Cu	Mn	Mg		Cr	Zn	Ti	Other
Name	g/cm3	Min	Max	Max	Max	Max	Min	Max	Max	Max	Max	Max	Rest
EN AW-6063	2.7	0.2	0.6	0.35	0.1	0.1	0.45	0.9	0.1	0.1	0.1	0.15	Al, Aluminium

		Thermal conductivity	Coefficient of thermal expansion	Melting point		Elastic modulus	Electrical conductivity
Alloy	Temper	W/m*K	µm/(m*K)	min °C	max °C	KN/mm2	%IACS
EN AW-6063	O	218	23.5	615	655	69	57.5
EN AW-6063	T1	193	23.5	615	655	69	50.5
EN AW-6063	T4	197	23.5	615	655	69	49.5
EN AW-6063	T5	209	23.5	615	655	69	55.5
EN AW-6063	T6	201	23.5	615	655	69	52
EN AW-6063	T8	201	23.5	615	655	69	52
