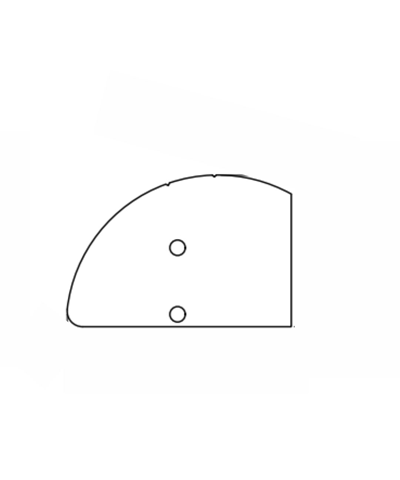

ATP913 - 72,88 - 49.3 mm

EN AW-6063 ATP913 - 72,88 - 49.3 mm

Black anodized 20 µm
Material id:
1131385
Length
49.3 mm
Surface
Black anodized 20 µm
Profile name
ATP913 - 72,88
Weight
≈ 0.28 kg/m
CO2e (avg)
≈ 8.7 kg/kg

Download PDF

Download drawings in PDF
Stock
Stock material

EN AW-6063

Suitable for anodizing and has a high corrosion resistance. The alloy is suitable for welding.

We are not liable for items out of stock. The specified weight is theoretical. Please contact us if you have any further enquiries.

Technical Specifications

Alloys

Density Si Fe Cu Mn Mg Cr Zn Ti Other
Name g/cm3 Min Max Max Max Max Min Max Max Max Max Max Rest
EN AW-6063 2.7 0.2 0.6 0.35 0.1 0.1 0.45 0.9 0.1 0.1 0.1 0.15 Al, Aluminium

Aluminium Properties

Thermal conductivity Coefficient of thermal expansion Melting point Elastic modulus Electrical conductivity
Alloy Temper W/m*K µm/(m*K) min °C max °C KN/mm2 %IACS
EN AW-6063 O 218 23.5 615 655 69 57.5
EN AW-6063 T1 193 23.5 615 655 69 50.5
EN AW-6063 T4 197 23.5 615 655 69 49.5
EN AW-6063 T5 209 23.5 615 655 69 55.5
EN AW-6063 T6 201 23.5 615 655 69 52
EN AW-6063 T8 201 23.5 615 655 69 52

Mechanical properties

Dimension Tensile strength (Rm) MPa Proof stress (Rp0,2) Elongation Brinell Hardness Elongation A50mm
Norm Alloy Temper Min Max Rm N/mm2 MPa % min HBS % min
EN 755-2:2013 EN AW-6063 T6 - 25 215 170 10 75 8
EN 755-2:2013 EN AW-6063 T6 - 10 215 170 8 75 6
EN 755-2:2013 EN AW-6063 T6 - 150 215 170 10 75 8
EN 755-2:2013 EN AW-6063 T6 10 25 195 160 8 75 6
EN 755-2:2013 EN AW-6063 T6 150 200 195 160 10 75 -
